    SP3528 Series

    Small High Pressure High Luminous Efficacy

    FEATURES:

    • 18V drive，low current，high power conversion efficiency
    • Thin encapsulation with heat sink，efficient heat dissipation
    • Applicable to LED bulb，downlights，module etc. cost-effective
    • Rated power：0.6W

    ABSOLUTE MAXIMUM RATINGS:

    Parameter Symbol Rating
    Forward Current IF 35mA
    Pulse Forwards Current*²
    		 IFP 100mA
    Reverse Voltage
    		 VR
    		 30V
    Working Temperature
    		 TOPR
    		 -30~+85℃
    Storage Temperature
    		 TSTG
    		 -40~+100℃


    PRODUCT PARAMETERS/TA=25℃:

    Color Part number Color temp（K） CRI Ra Min I F( mA)
    TEST
    		 Φv（l m）
    Typ.
    		 VF( V)
    Typ.
    Natural white FM-SP3528WNS-460R 5600-6500 70 30 65 19.2
    Neutral white
    		 FM-SP3528WDS-460R-R80 3700-4200 80 30 60 19.2
    Warm white
    		 FM-SP3528WLS-460R-R80
    		 2800-3200
    		 80
    		 30
    		 58
    		 19.2

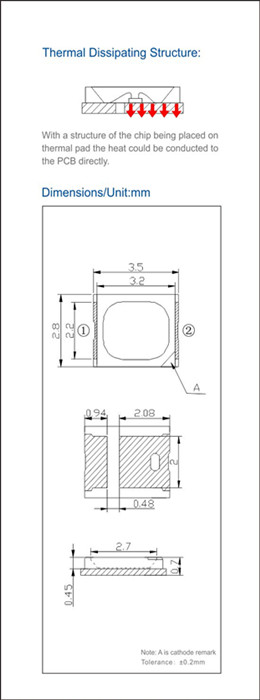

    DIMENSIONS/UNIT(mm):
